Name

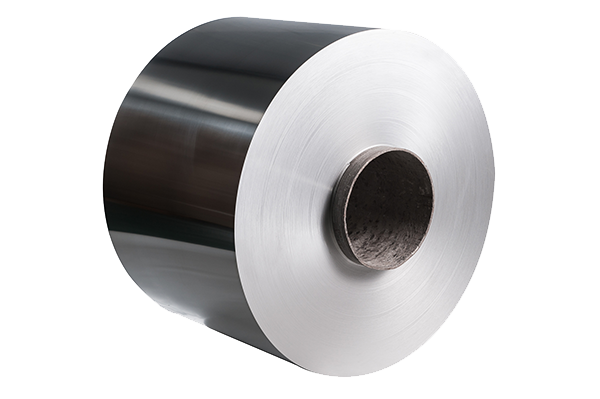

Aluminium Foil for transformer winding

Grade/Alloy

1050, 1060, 1070, 1350

Temper

O/HO(Totally annealed)

Thickness

0.15-3.5mm

Width

20-1600mm

ID

76.2/152.4/200/300/400/500mm

Purity

AL 99.5% to 99.7%

Conductivity

61.50% to 62.00% IACS at 20℃

Application

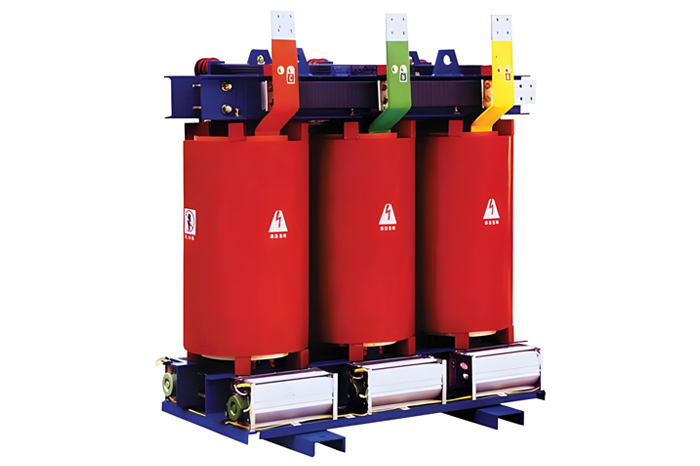

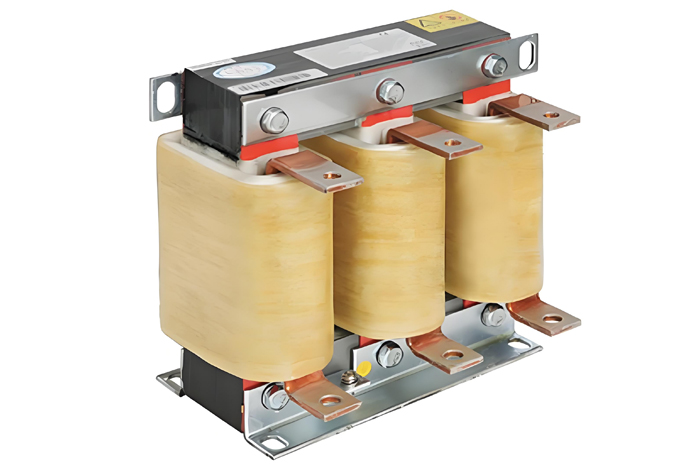

Transformers, Reactors, LV windings, HV windings
